PRODUCT MODEL：HDMI1X4 Distributor
Series HDMIDistributor, assign one HDMI portfourindividualHDMIHigh definition audio and video distributor for ports. Can enable set-top boxes, DVD players, D-VHS players, and other HDTV devicesThe HDMISignal allocationmultipleConsistent and synchronized pathHDMISignal output. outputofA single signal can simultaneously connect to high-definition projectors,DLP， LCD high-definition television and other audio equipment.
Product Features:
Capable of signal buffering and amplification
Output 15Long distance transmission of meters（AWG26）
By stacking, significant improvement can be achievedHDMINumber of output ports
support480p， 576p, 720p, 1080i, 1080p resolution
Support high-definition videos, high-quality, clear, and high resolution1080pThe resolution of HDTV
Easily connect to multi-channel audio receiving devices
fully supportHDMI1.3And downward compatibility
Fully compatibleHDCP,Supports Blu ray discs
Quick installation and simple operation
| project |
describe |
|
| function |
Number of input signals |
1 Road |
| Number of output signals |
4 routes |
|
| Power supply section |
Adapt to voltage range |
5V DC |
| power consumption |
<5W |
|
| Performance and Interface Section |
Supports HDMI version |
HDMI 1.3 |
| Support HDCP version |
HDCP1.2 |
|
| HDMI resolution |
1080p/1080i/720p/720i/576p/576i/480p/480i |
|
| Support video color formats |
24 bits/Dark 30 bits/Dark 36 bits |
|
| Supports audio formats |
DTS/HD/Dolby-tureHD/LPCM7.1/ DTS/Dolby-AC3/DSD |
|
| Maximum transmission rate |
10.2Gbps |
|
| Audio transmission signal format |
Left and right stereo audio |
|
| Input and output TMDS signals |
0.5-1.5Vp-p(TMDS) |
|
| Input and output DDC signals |
5Vp-p(TTL) |
|
| Input cable length |
≤ 15m (AWG26 HDMI 1.3 standard cable) |
|
| Output cable length |
≤ 20m (AWG26 HDMI 1.3 standard cable) |
|
| Protection level |
Whole machine electrostatic protection |
1a Contact discharge level 3 1b Air discharge level 3 Execution standard: IEC61000-4-2 |
| operating environment |
operation temperature |
0~50℃ |
| storage temperature |
-20℃~70℃ |
|
| Humidity (without condensation) |
0~95% |
|
| Body attributes |
Dimensions (length x width x height) |
17.7mm×8.8mm×2.2mm |
| casing |
ferrous material |
|
| colour |
Black |
|
| net weight |
1546g |
|
| reliability |
Mean Time Between Failures (MTBF) |
>20000 small |

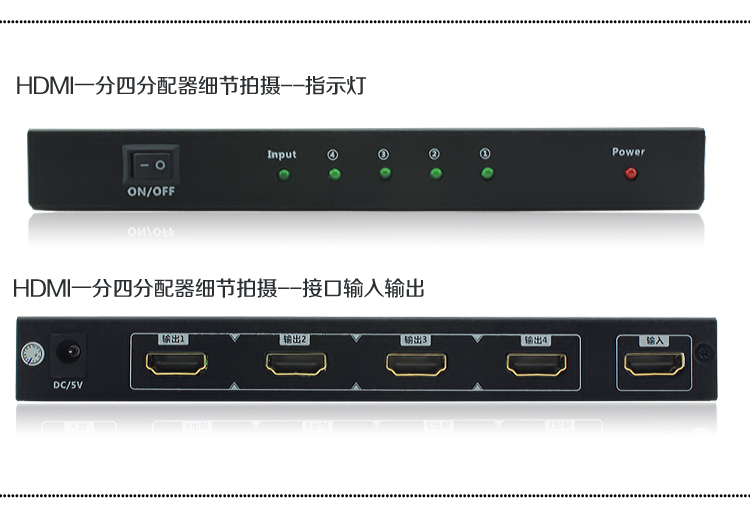

Product schematic diagram:

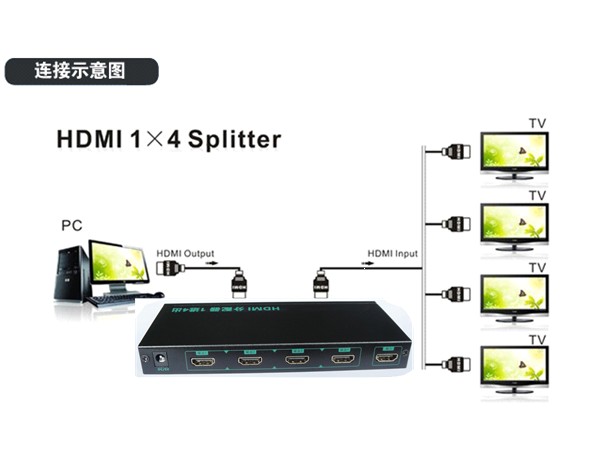

Connection diagram:
